mSTAUR_RK - Thermo-hygrometer
Main Applications
- Meteorology – weather measures
- Agro-meteorology and irrigation systems
- Hydrogeology
- Eolic and anemometric station
- Photovoltaic plant – Accuracy measure of temperature
- Environmental monitoring
More information
 |
Applications | |
Info / Quote request |
Description
MAIN FEATURES

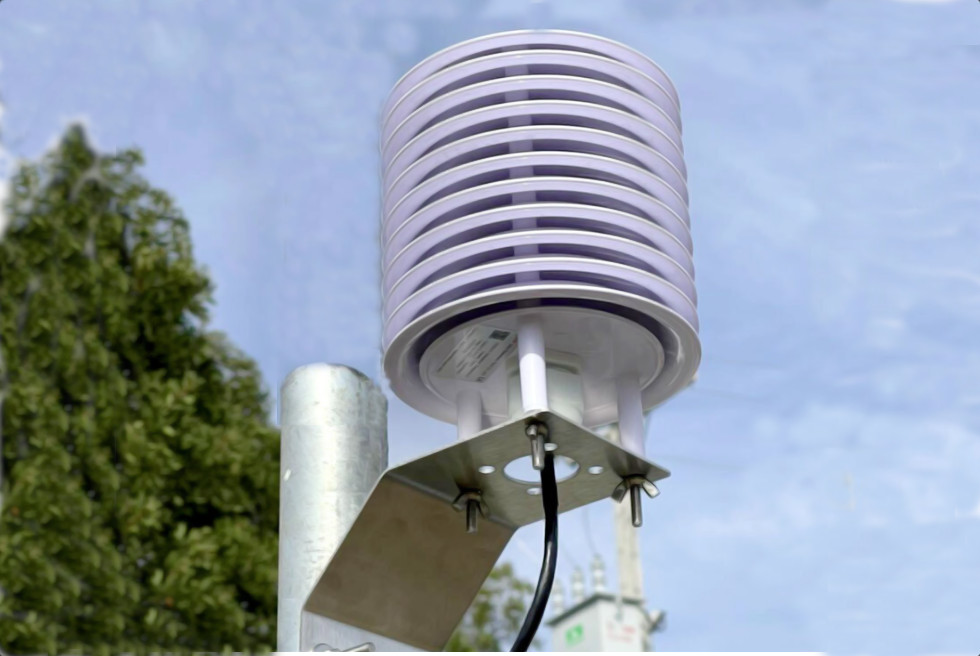

The thermometers micro series consist of an air temperature transducer with high accuracy and a microprocessor for the management of the measure. The transducers are mounted inside of special screens that protect the temperature sensor from the solar radiation; these shields are made in white ABS treated to maintain the white color over time to allow easy cleaning and maintenance.
Every sensor includes an universal bracket that allow to fix it easily over vertical or horizontal mast, walls etc.
MEASURING PRINCIPLE
The humidity transducer is capacitive, indeed the temperature one is a Platinum thermoresistance (Pt 100Ω @0°C). The changing of humdity and Pt100 resistance are transformed in a current or voltage linear signals proportional with the humidity and temperature changements.
ADVANTAGES
- Short time response
- Good linearity
- Mechanical robustness
- Reliability
- Long Life-time
